Hinged snow plow LLS-2800
Additional information
Hinged snow plow LLS-2800
The LLS-2800 series saws produced by OÜ Mõisaküla Masinatehas are
constructed
to remove snow from surfaced roads. The snow plow LLS-2800 is in the middle
butterfly plow with hinge and steel blade. It is a modern solution
for a tractor or front loader with a spring-loaded saw.
The index 2800 of the saw mark indicates the total width of the blades of the saw
in millimeters.
The spring mechanism of the saw is designed to withstand shocks caused by road irregularities
for relief, ensuring a quick and smooth overcoming of the obstacle.
Polyurethane paint is used as a finishing material, which is similar to ordinary paint
compared to wear better. Before painting, the details are processed
with a shotgun.
Rubber knives, steel knives and LED marker lights are available as accessories.
The product is not suitable for pushing sand, gravel, ice, etc.!
Technical specifications
| Total width of plow blade edges (mm) | 2800 |
| Height of plow blade (with edges) (mm) | 837 |
| Operating width of plow blades at max rotation angle (mm) | 2380 |
| Maximum rotation angle of the plow (to both sides) (°) | 31° |

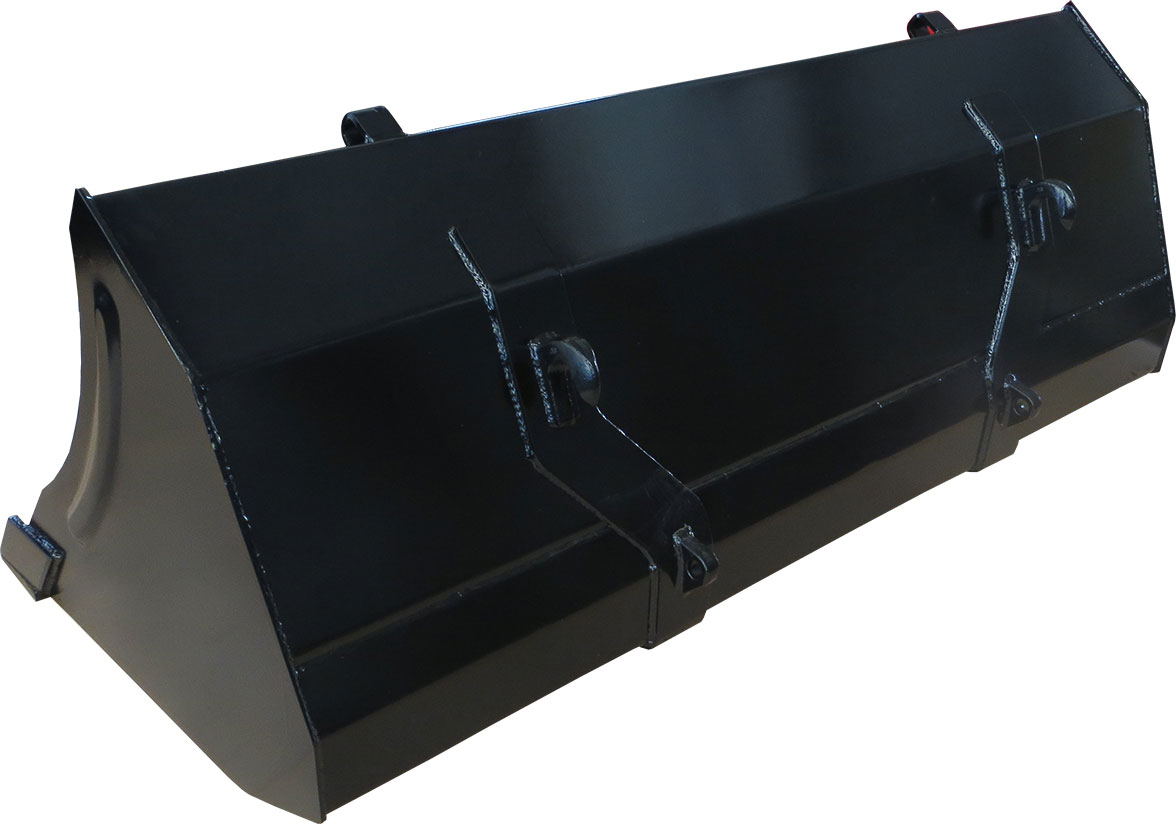

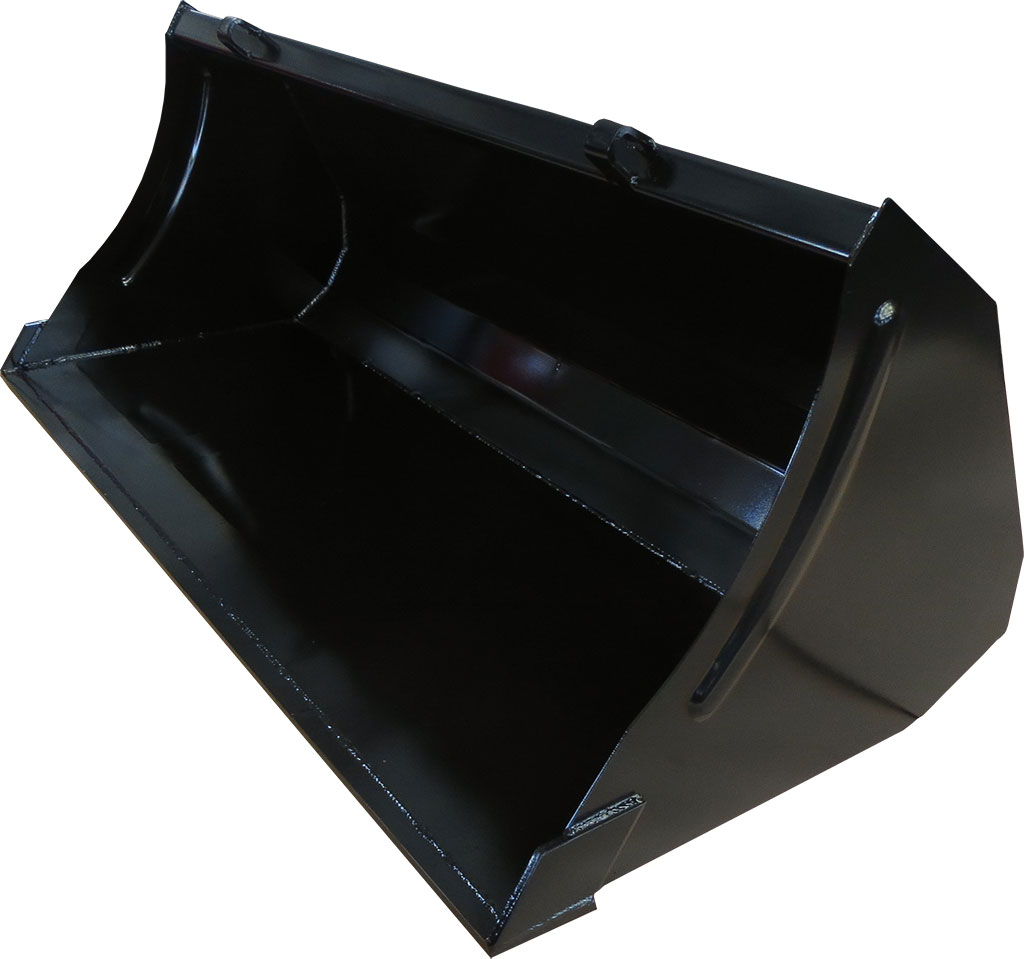

Universal bucket
Additional information
Universal bucket
- Bucket widths; 1200/1400/2000/2200/2400 mm
- Bucket capacity: 0.35-1.0 m3
- Product weight: 162-278 kg
- Attachments: EURO/SMS
As a special order, the product can also be ordered in other widths and others
with attachments

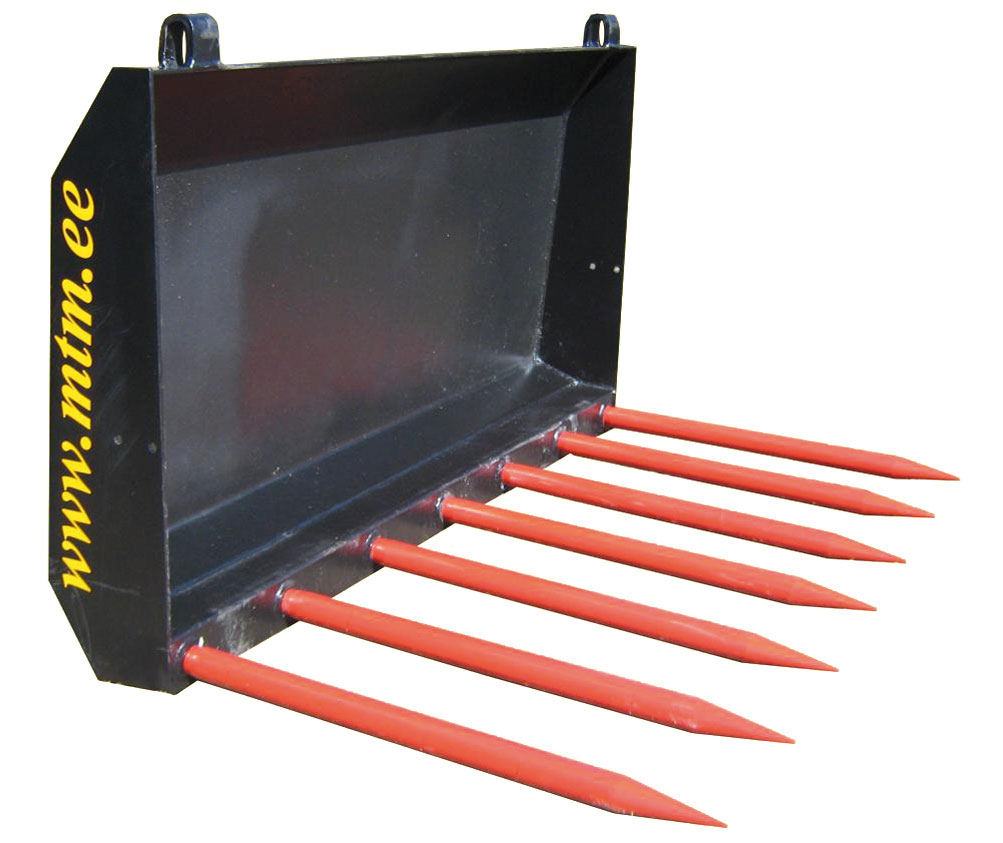

Silage forks
Additional information
Silage forks
- Product width: 1350/1560/1770/1980 mm
- Number of spears: 7/8/9/10 pcs
- Product weight: 125/143/170/179 kg
- Attachments: EURO/SMS
*As a special order, the product can also be ordered with other attachments

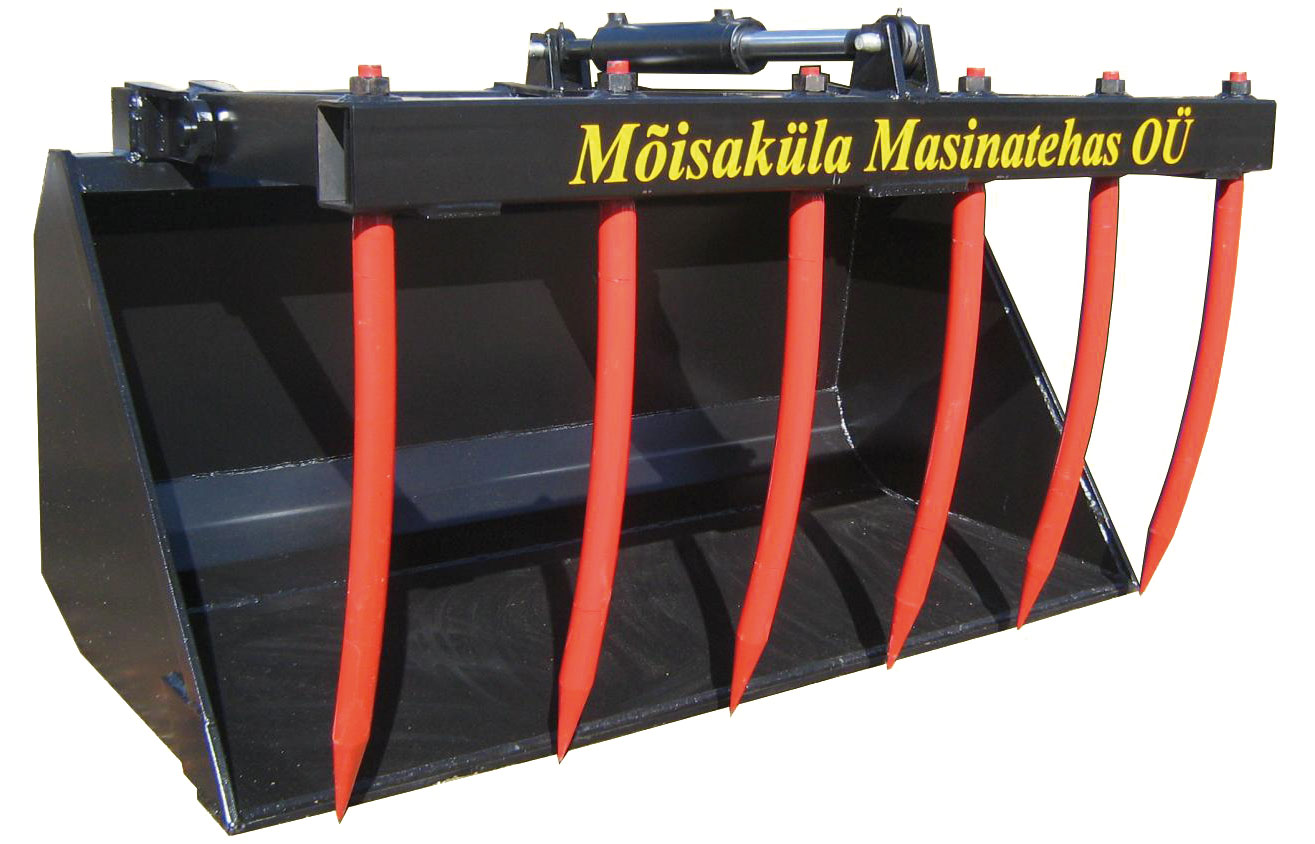

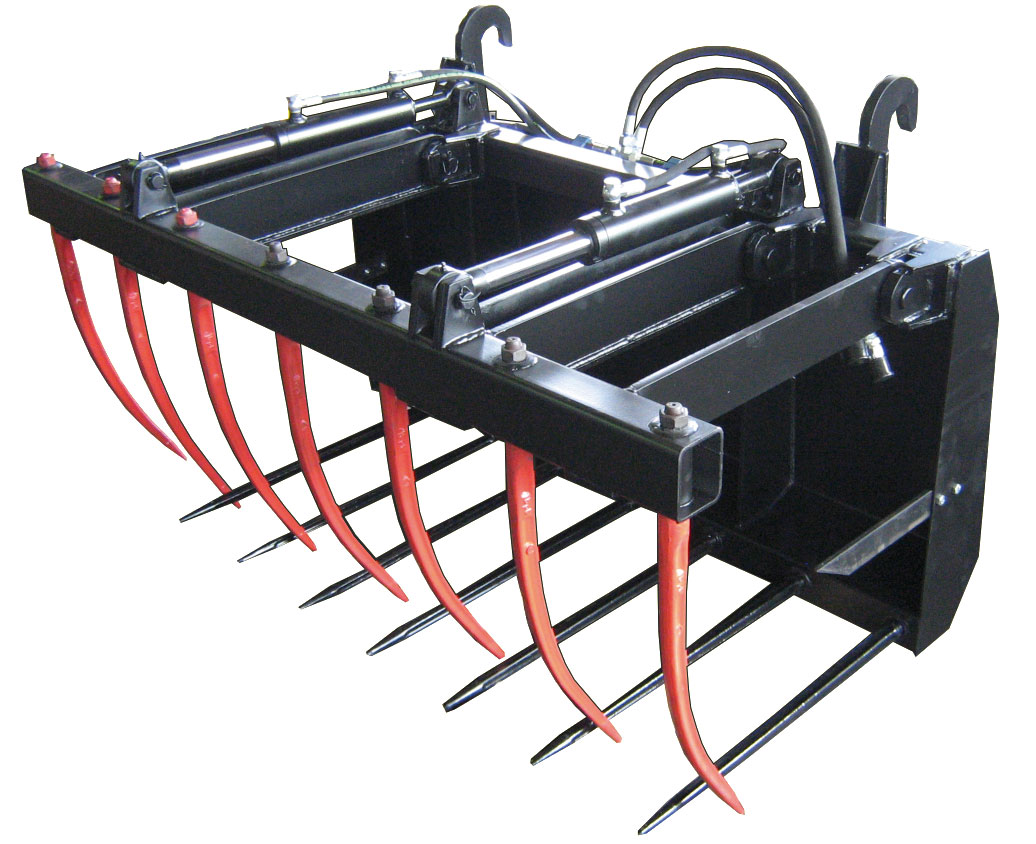

Silage grapple
Additional information
Silage grapple
- Width with one cylinder: 1350 mm
- Width with two cylinders: 1600 mm
- Attachments: EURO/SMS
*As a special order, the product can also be ordered with other attachments

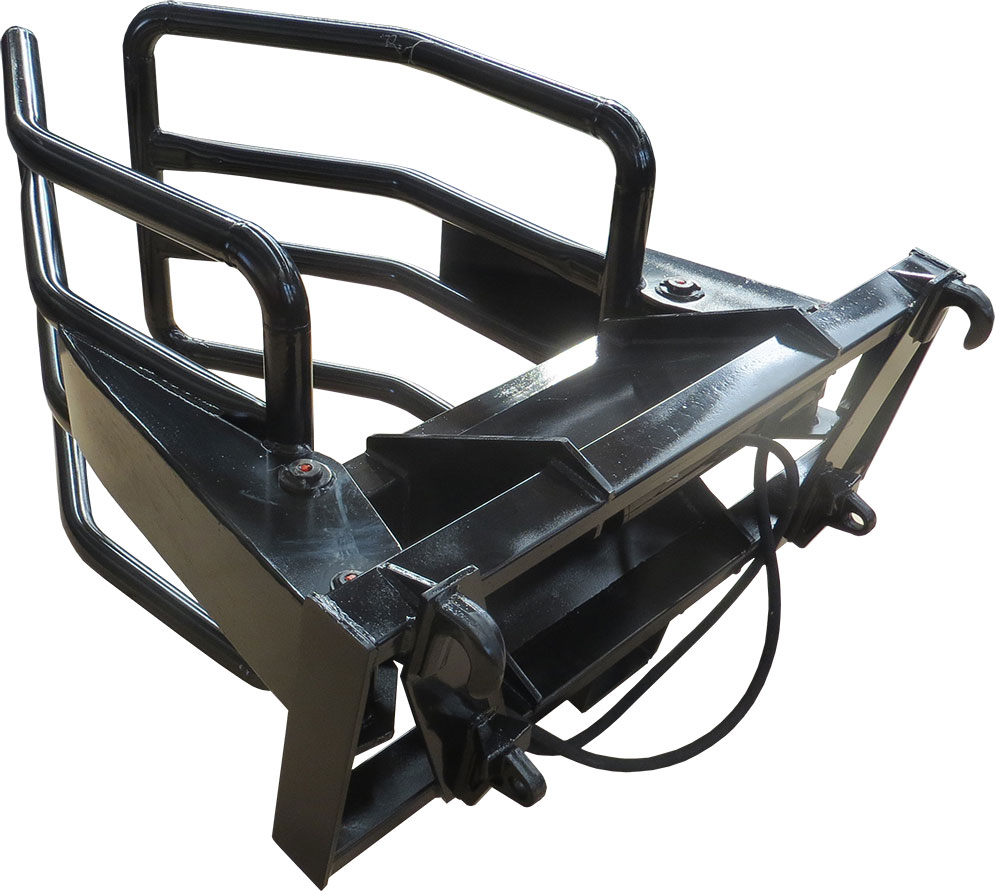

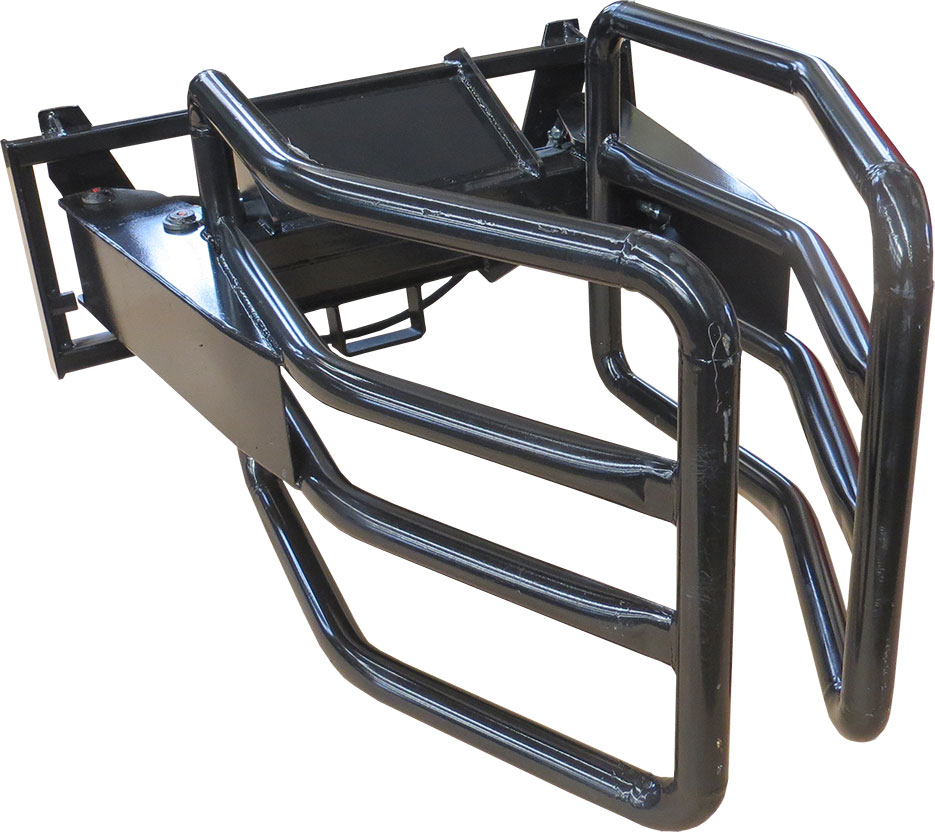

Bale grapple
Additional information
Bale grapple
- Product weight: 260 kg
- Attachments: EURO/SMS
*As a special order, the product can also be ordered with other attachments

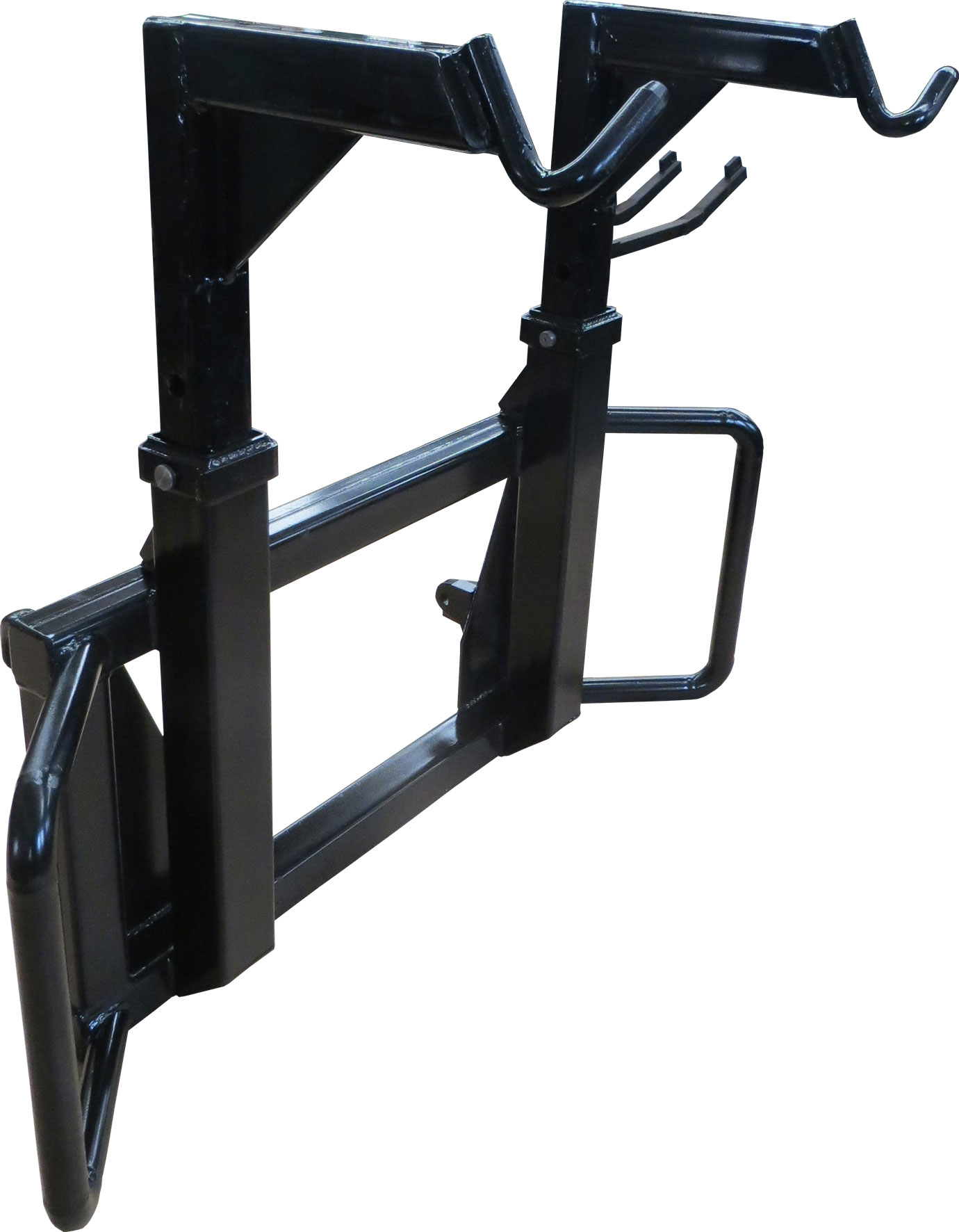

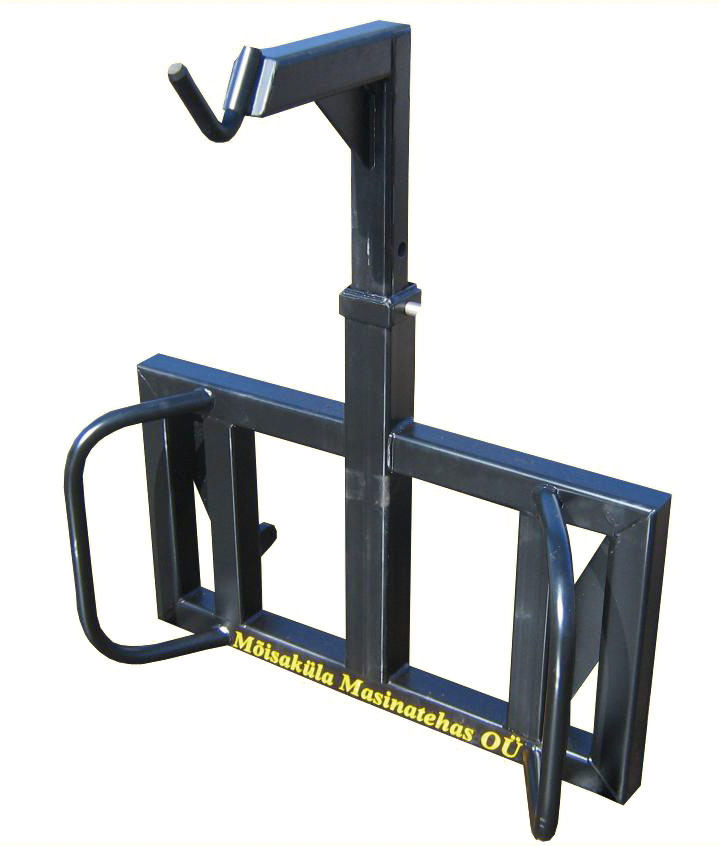

Bag lifter
Additional information
Bag lifter
- With one or two hooks
- Height of the hook can be adjusted by 500 mm
- Maximum lifting height: 1720 mm
- Product weight: 82 kg
- Attachments: EURO/SMS
*As a special order, the product can also be ordered with other attachments
Jaw bucket
Additional information
Jaw bucket
- Product width: 1350 mm*
- Bucket capacity: 0.35 m3
- Product weight: 310 kg
- Attachments: EURO/SMS
*As a special order, the product can also be ordered in other widths and others
with attachments

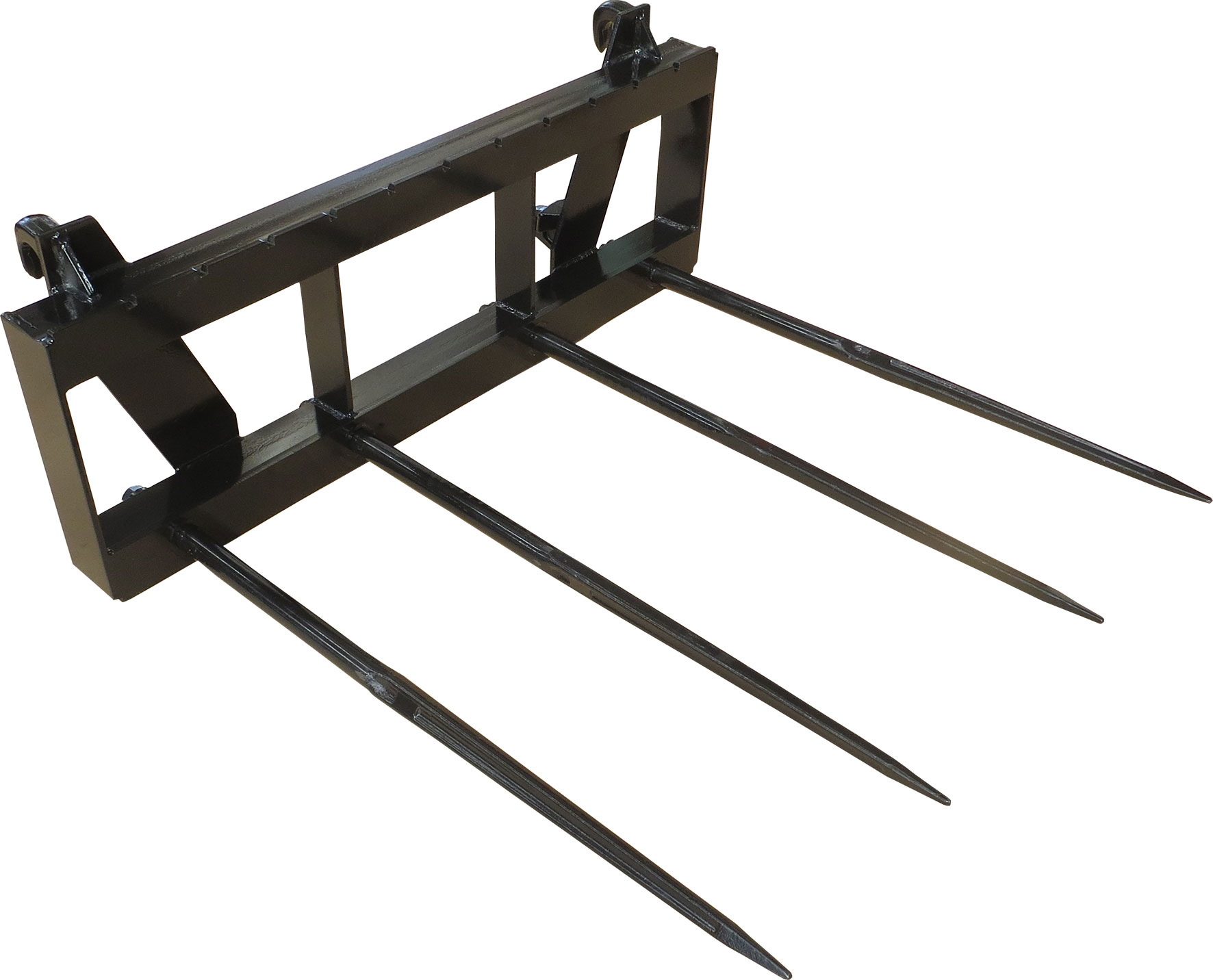

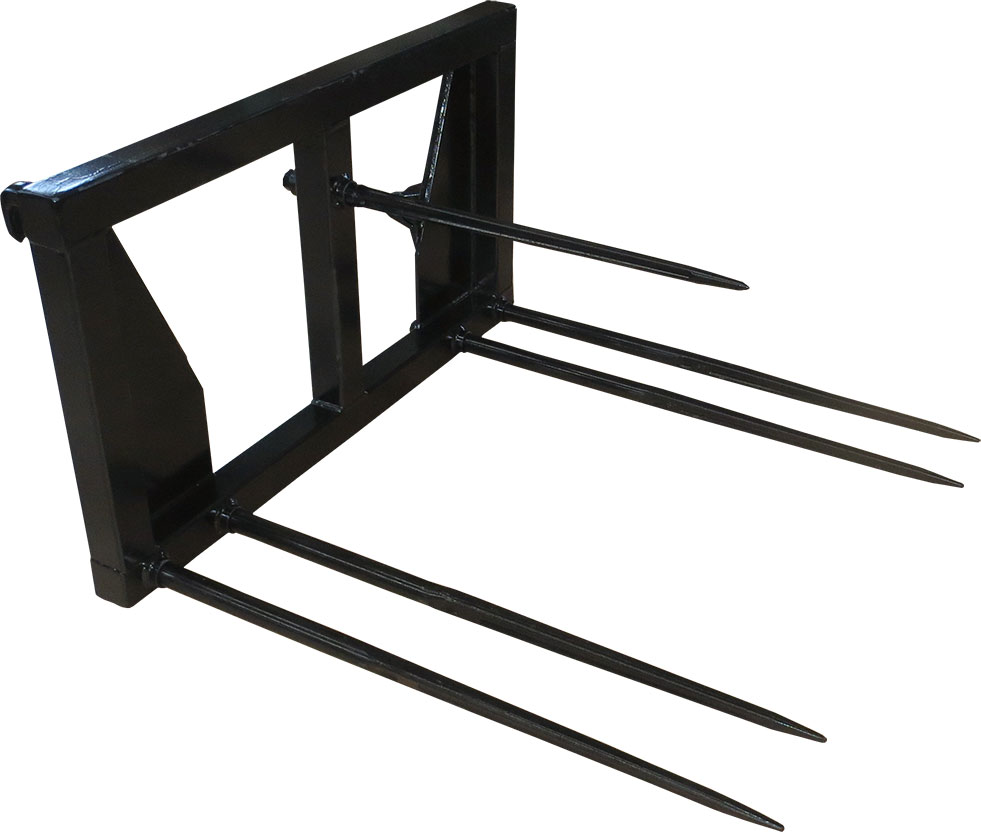

Hay bale forks
Additional information
Hay bale forks
- Can be ordered with one, three or five spears
- Product weight: 102 kg (with three spears)
- Attachments: EURO/SMS
- It is possible to order one to five spikes
*Others can also order the product as a special order
with attachments

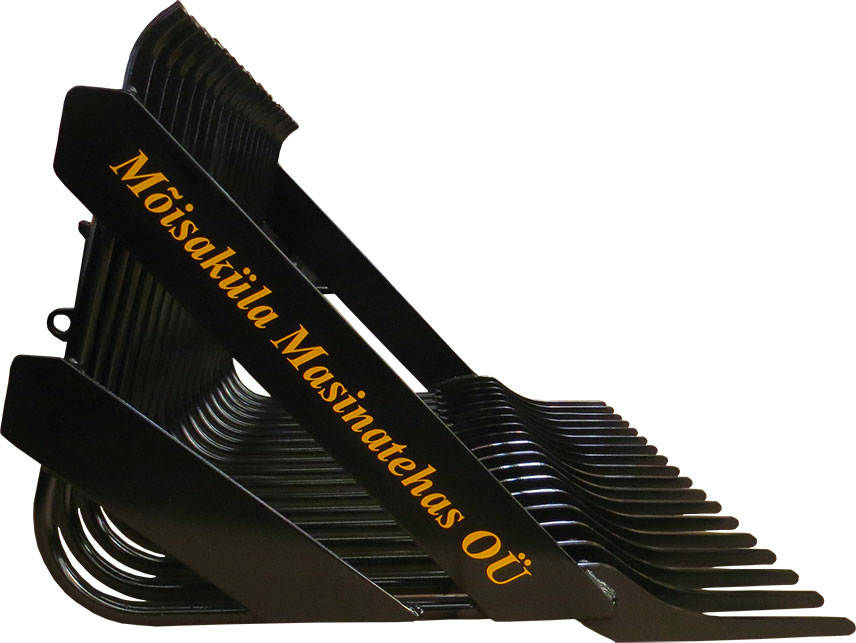

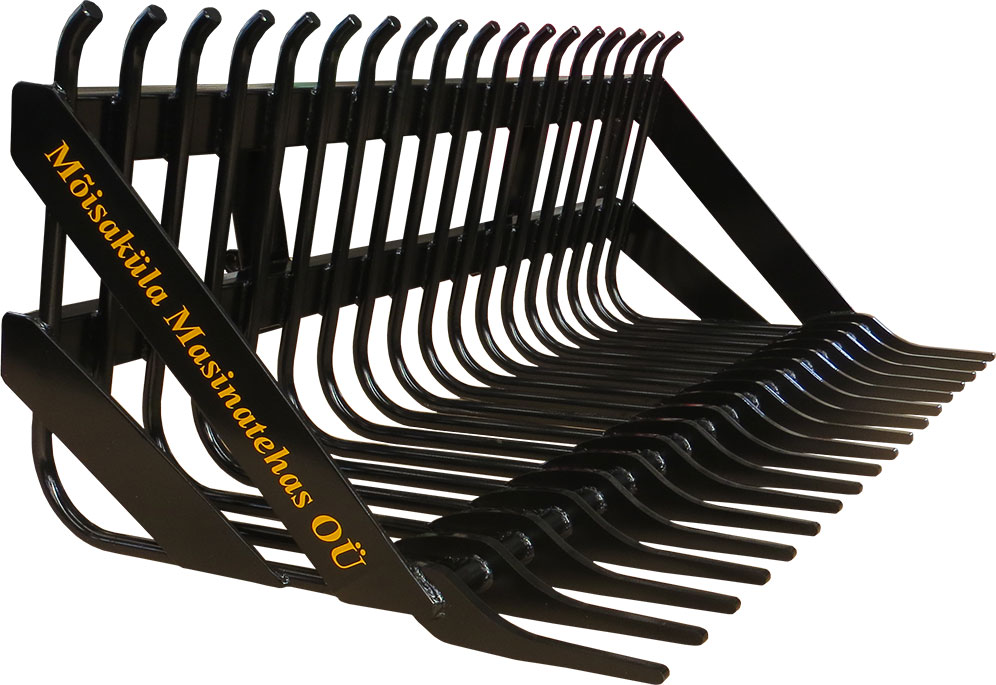

Rock bucket
Additional information
Rock bucket
- Product width: 1500/1920/2400 mm*
- Product weight: 212/272/415 kg
- Attachments: EURO/SMS/MANITOU/JCB/NEW HOLLAND/KRAMER/MERLO
*As a special order, the product can also be ordered in other widths and others
with attachments

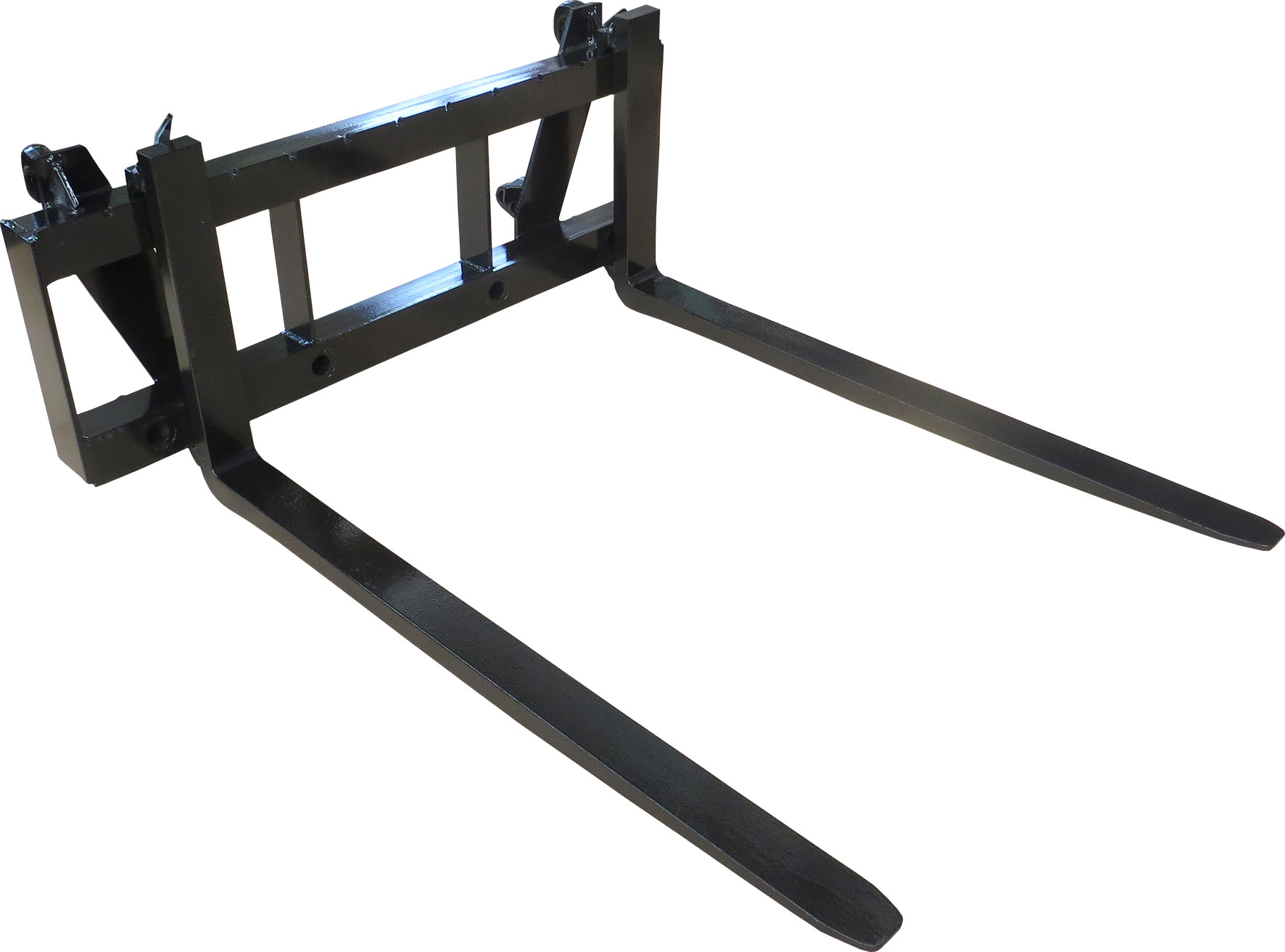

EUR-pallet load arms
Additional information
EUR-pallet load arms
- Width of the arms is adjustable to 400-1250 mm
- Arm length: 1200 mm
- Product weight 168 kg
- Up to four spears can be added
- Attachments: EURO/SMS
*As a special order, the product can also be ordered with other attachments

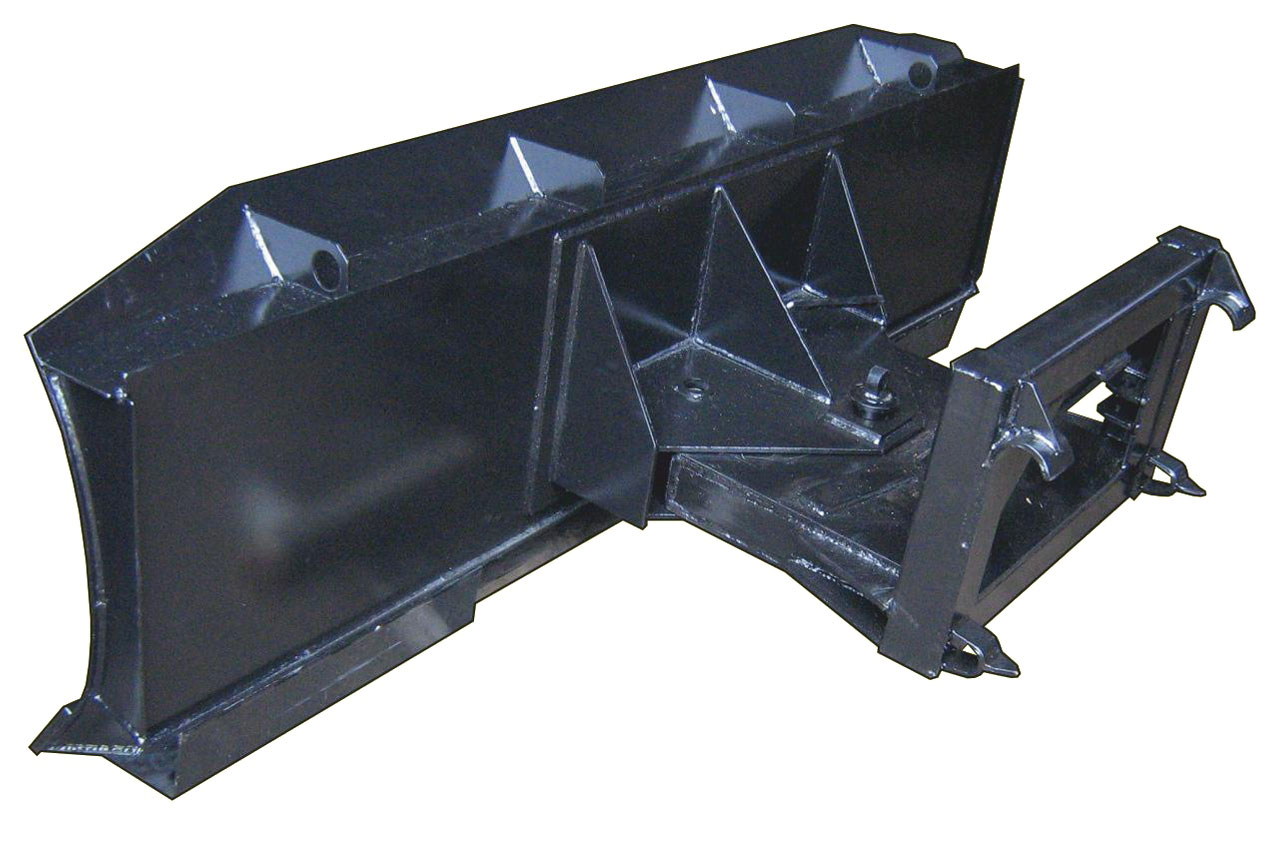

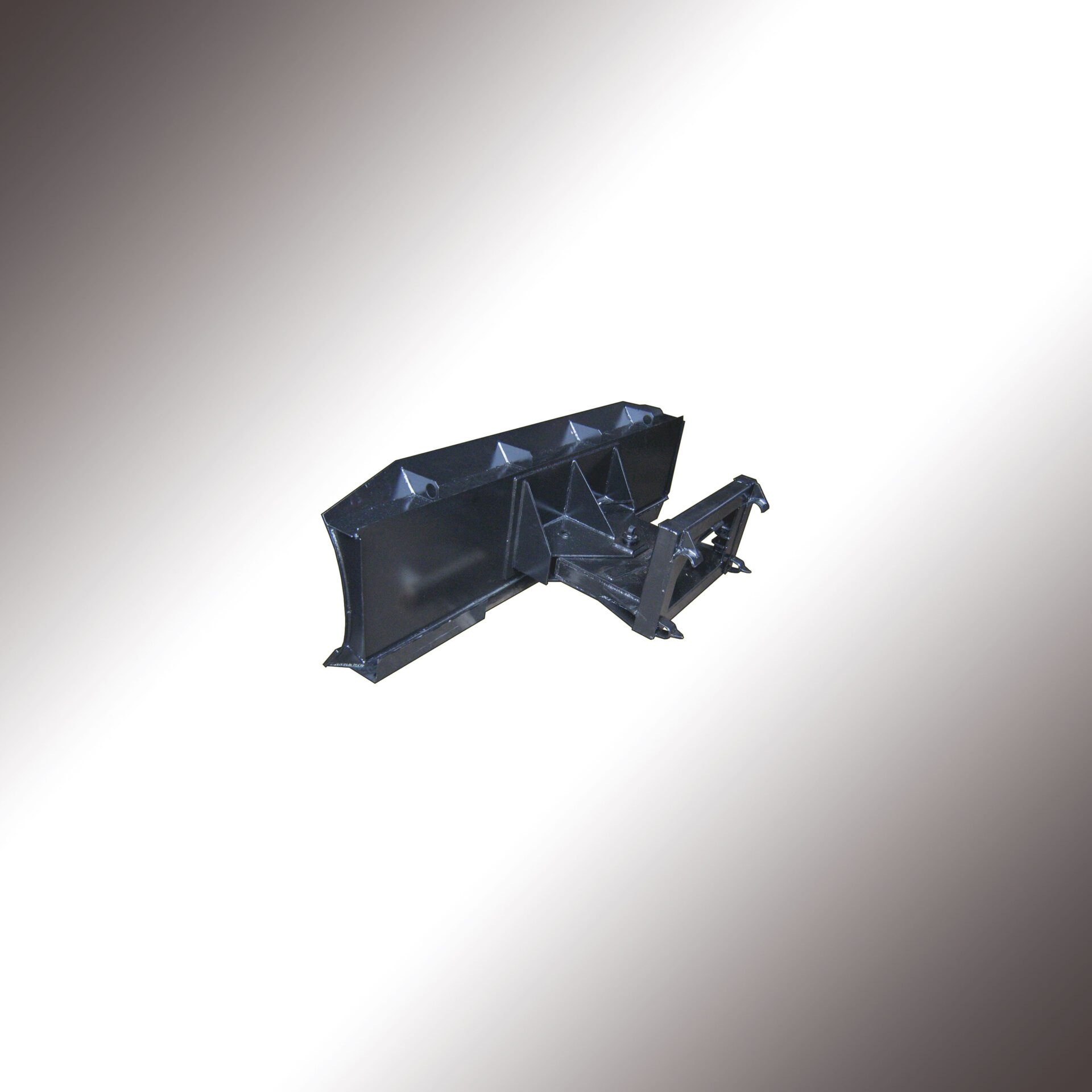

Bulldozer device
Additional information
Bulldozer device
- With rotation angle of ± 30˚
- Manually or hydraulically rotatable
- Product width: 2500 mm*
- Attachments: EURO/SMS
*As a special order, the product can also be ordered with other attachments
*This product can be custom-ordered in other widths.
Hinged snow plow LLS-3300
Additional information
Hinged snow plow LLS-3300
The index 3300 of the saw mark indicates the total width of the blades of the saw
in millimeters.
The spring mechanism of the saw is designed to withstand shocks caused by road irregularities
for relief, ensuring a quick and smooth overcoming of the obstacle.
Polyurethane paint is used as a finishing material, which is similar to ordinary paint
compared to wear better. Before painting, the details are processed
with a shotgun.
Rubber knives, steel knives and LED marker lights are available as accessories.
The product is not suitable for pushing sand, gravel, ice, etc.!
Technical specifications
Technical specifications
|
Total width of plow blade edges (mm)
|
3300 |
|
Height of plow blade (with edges) (mm)
|
837 |
|
Operating width of plow blades at max rotation angle (mm)
|
2870 |
|
Maximum rotation angle of the plow (to both sides) (°)
|
31° |

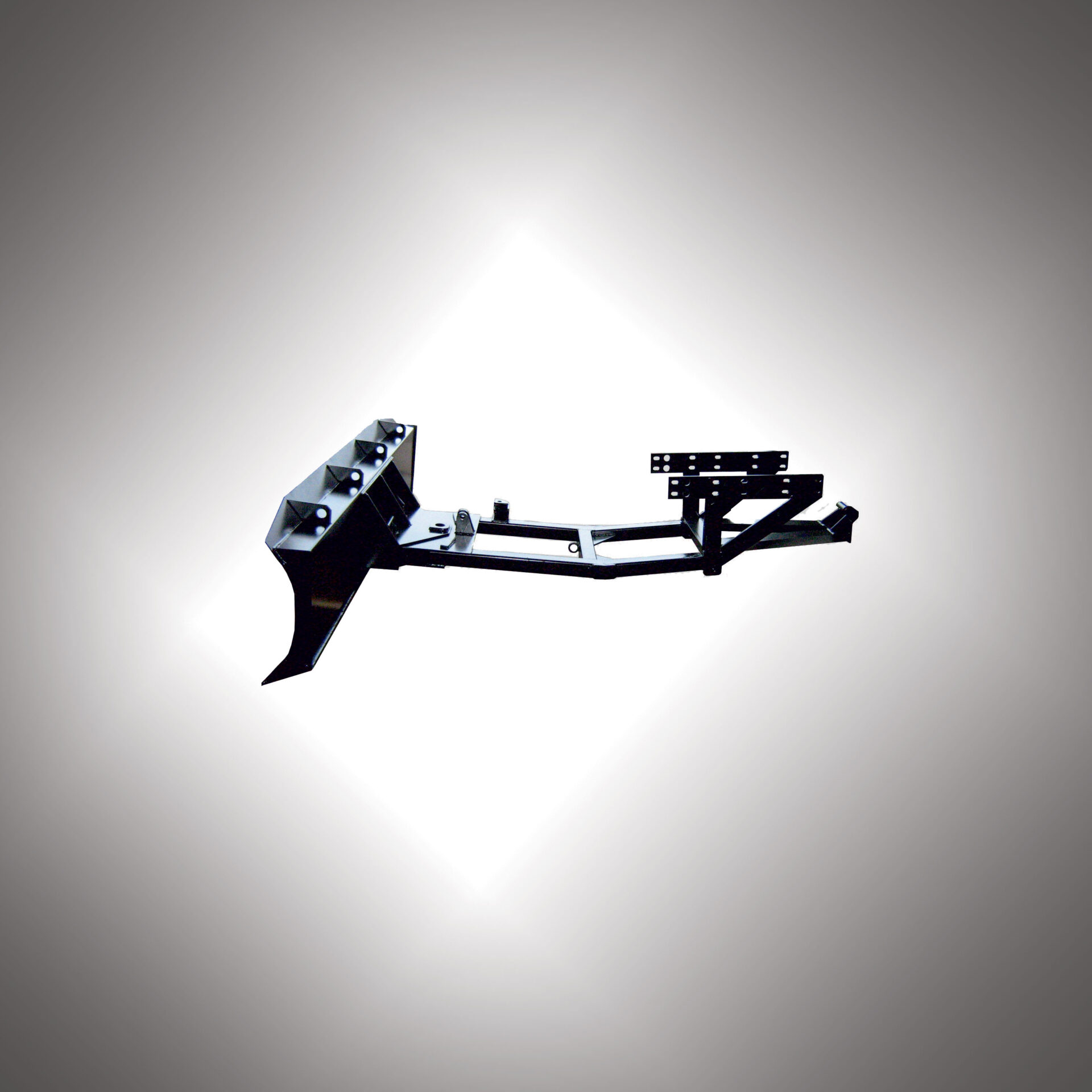

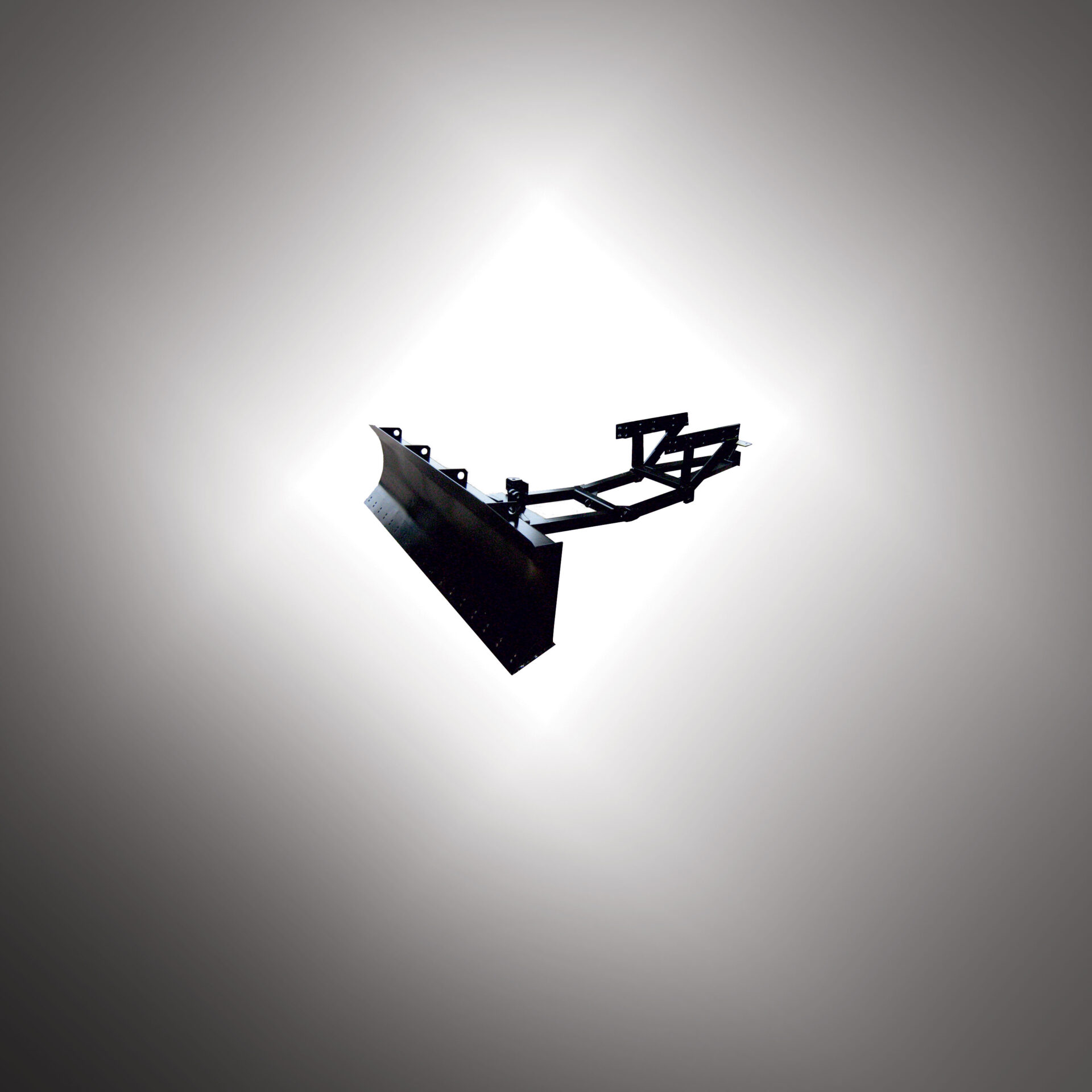

Bulldozer device 3404
Additional information
Bulldozer device 3404
Used for small-scale leveling works, for clearing roads from snow
etc
in agricultural and communal economy, as well as in construction.
The device with a width of up to 1900 mm can be attached to tractors,
whose power is 20-30 kW (T-25, T-30, BOBCAT 600, BOBCAT 700).
The device with a width of 2500mm can be attached to MTZ "Belarus"
tractor
for frames with a power of 55-70 kW.
The bulldozer plow is reversible. The plow is raised and lowered
hydraulically, turning manually or hydraulically. All usable
hydraulic devices and connecting elements comply with Euro standards.
Technical specifications
Technical specifications
| Tractor power (kW) | 20-30 | 20-30 |
| Width of blade (mm) | 1680 | 1900 |
| Height of blade (mm) | 500 | 500 |
| Rotation angle of blade (˚) | ±30˚; 45 | ±30˚; 45˚ |
| Weight (kg) | 250 | 300 |
| Raising the blade | Hydraulic | Hydraulic |
| Blade rotation | Manual | Manual |
| Price of the set for an T-25 frame (€) | * | * |
| Tractor power (kW) | 55-70 |
| Width of blade (mm) | 2500 |
| Height of blade (mm) | 700 |
| Rotation angle of blade (˚) | ±30˚ |
| Weight (kg) | 500 |
| Raising the blade | Hydraulic |
| Blade rotation | Hydraulic/manual |
| Price of the set for an MTZ frame (€) | * |
| Price of the set for a front lift system (€) | * |

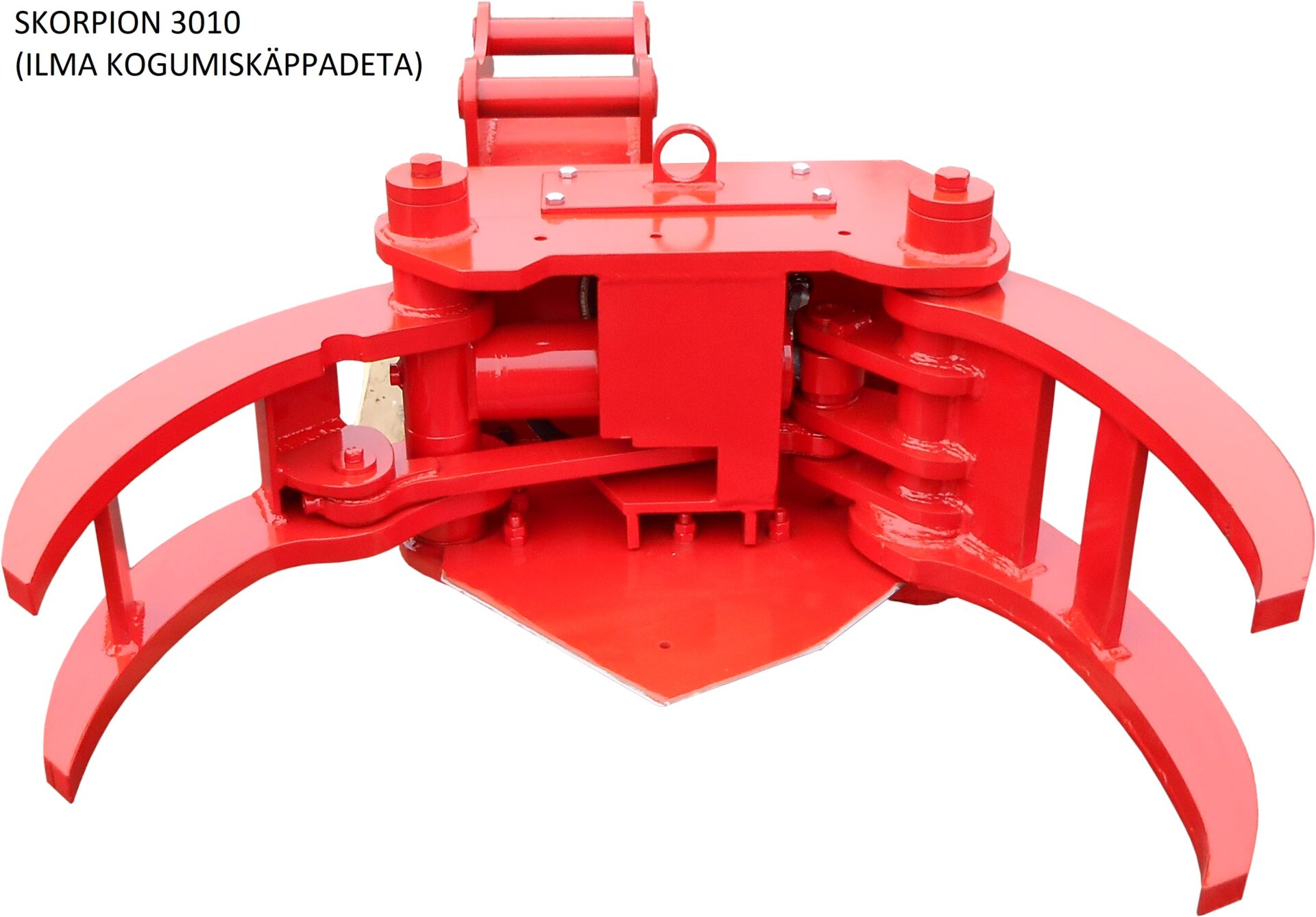

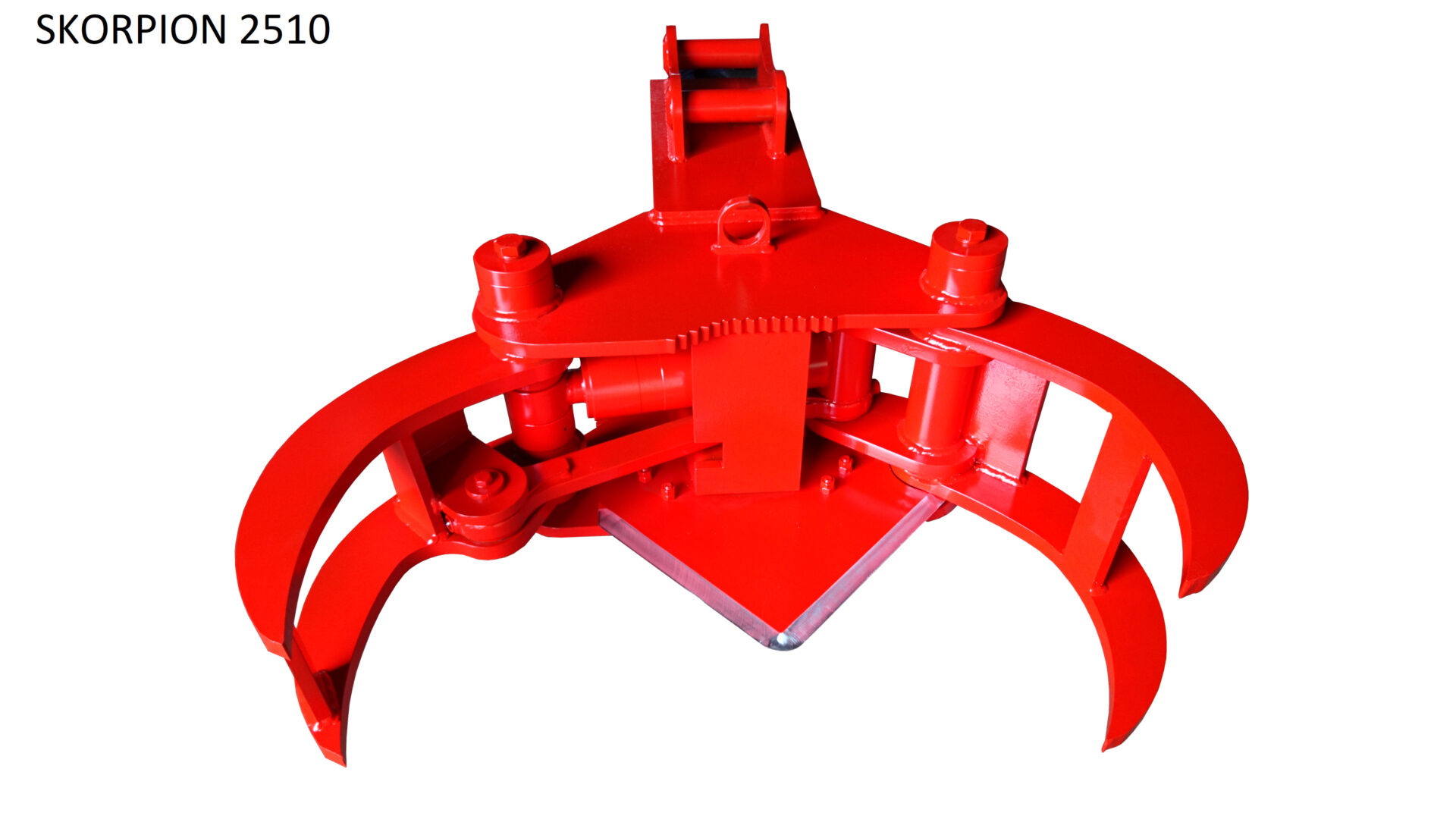

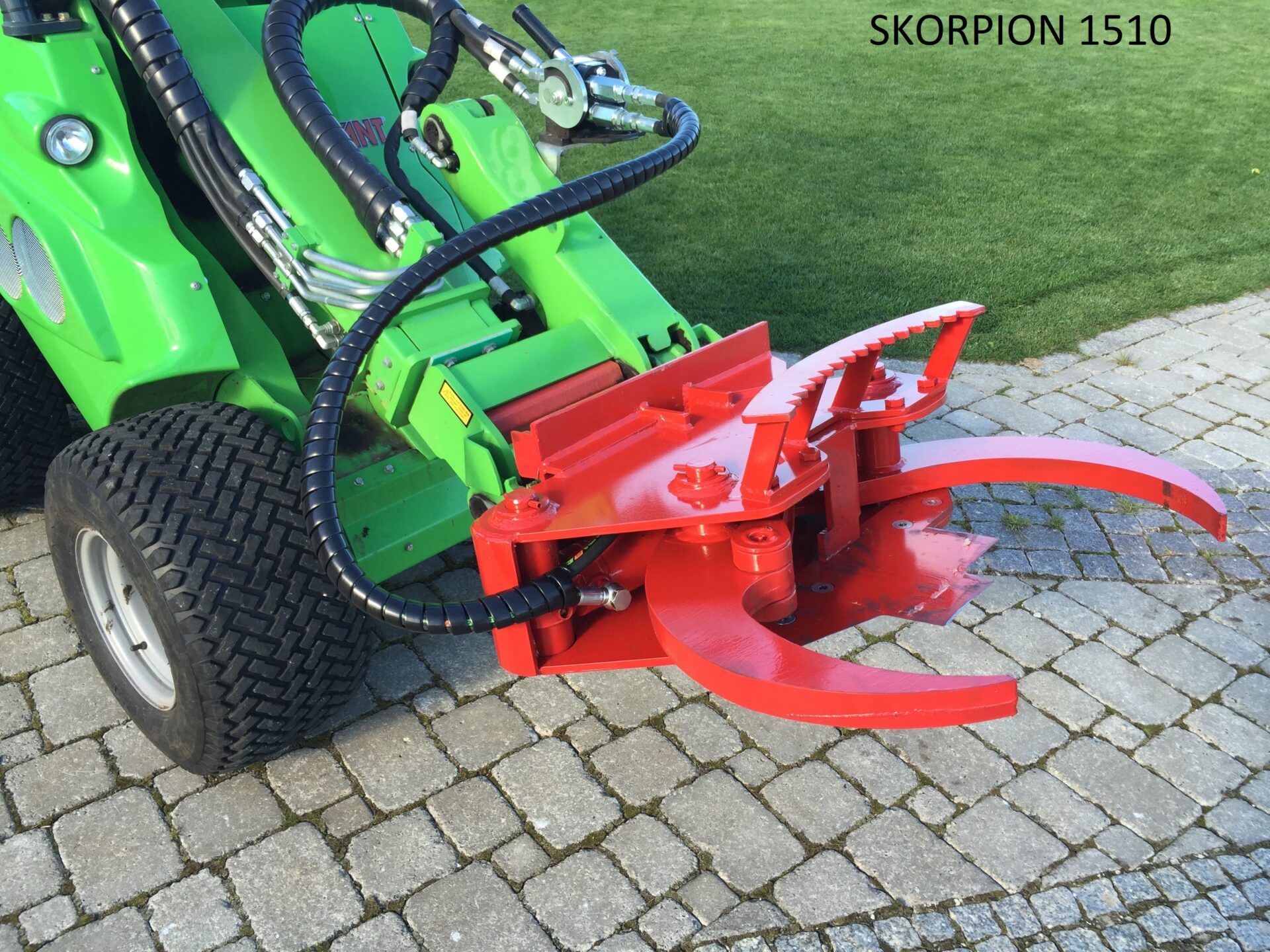

Energy wood grapple
Additional information

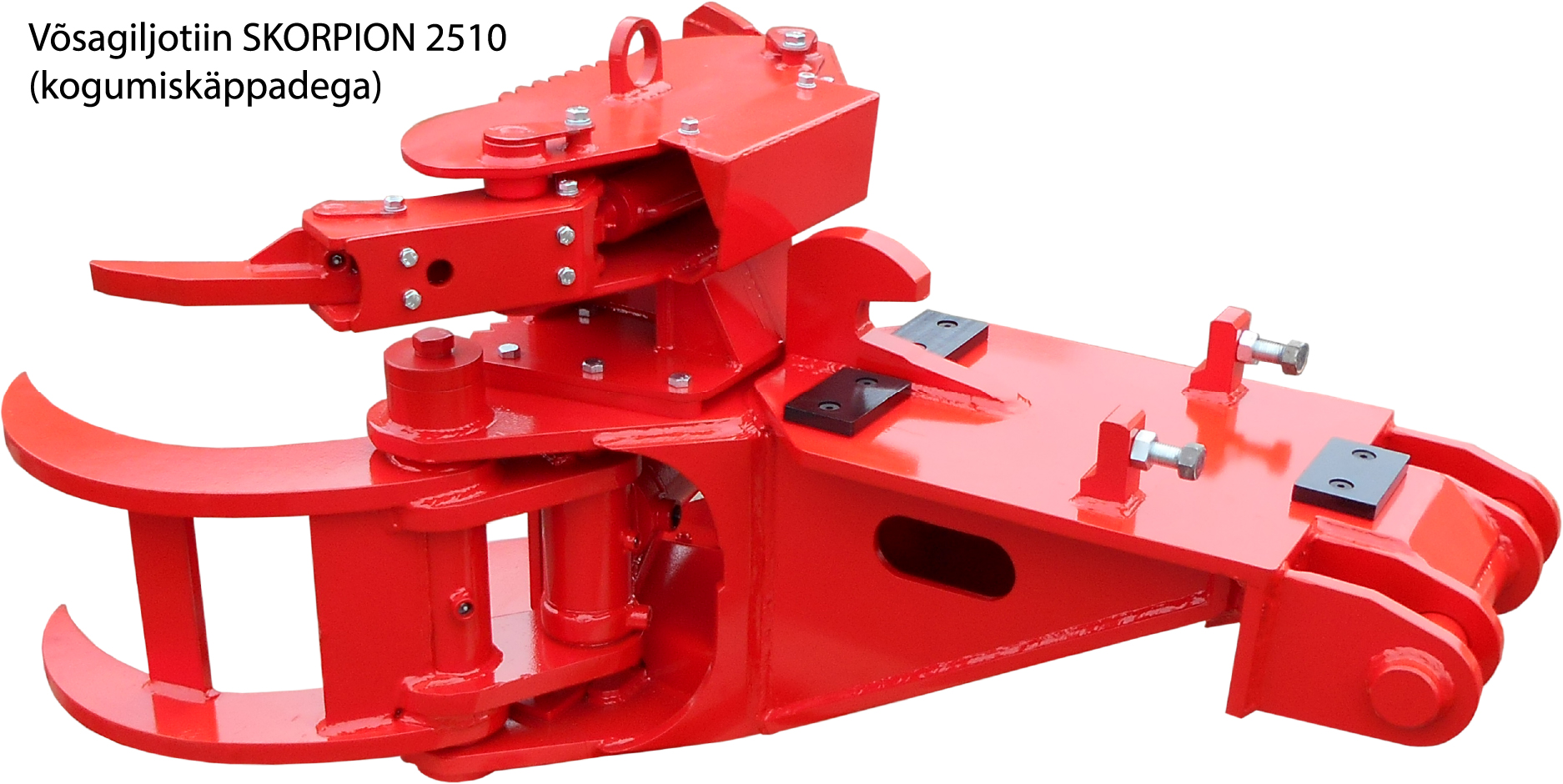

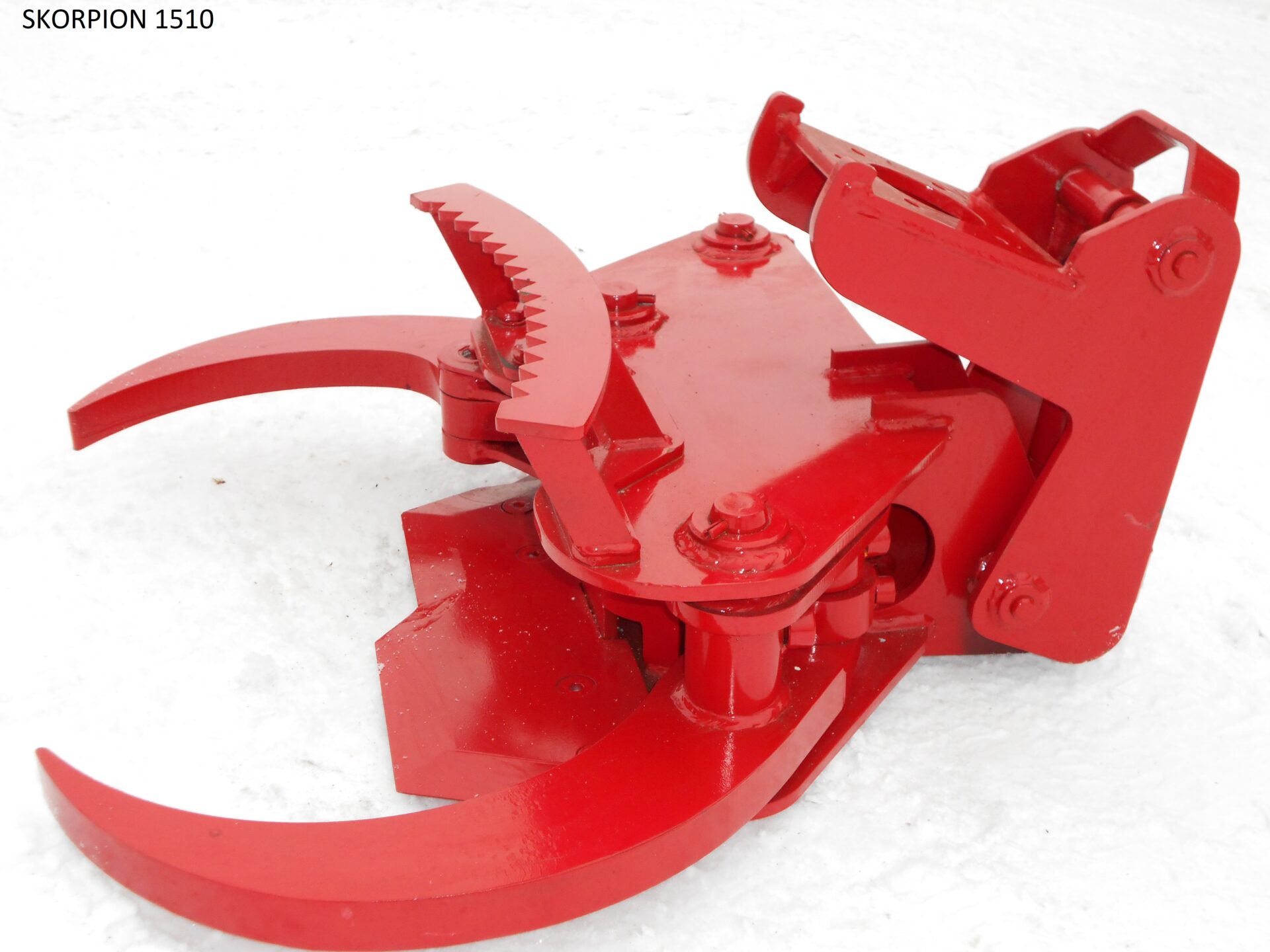

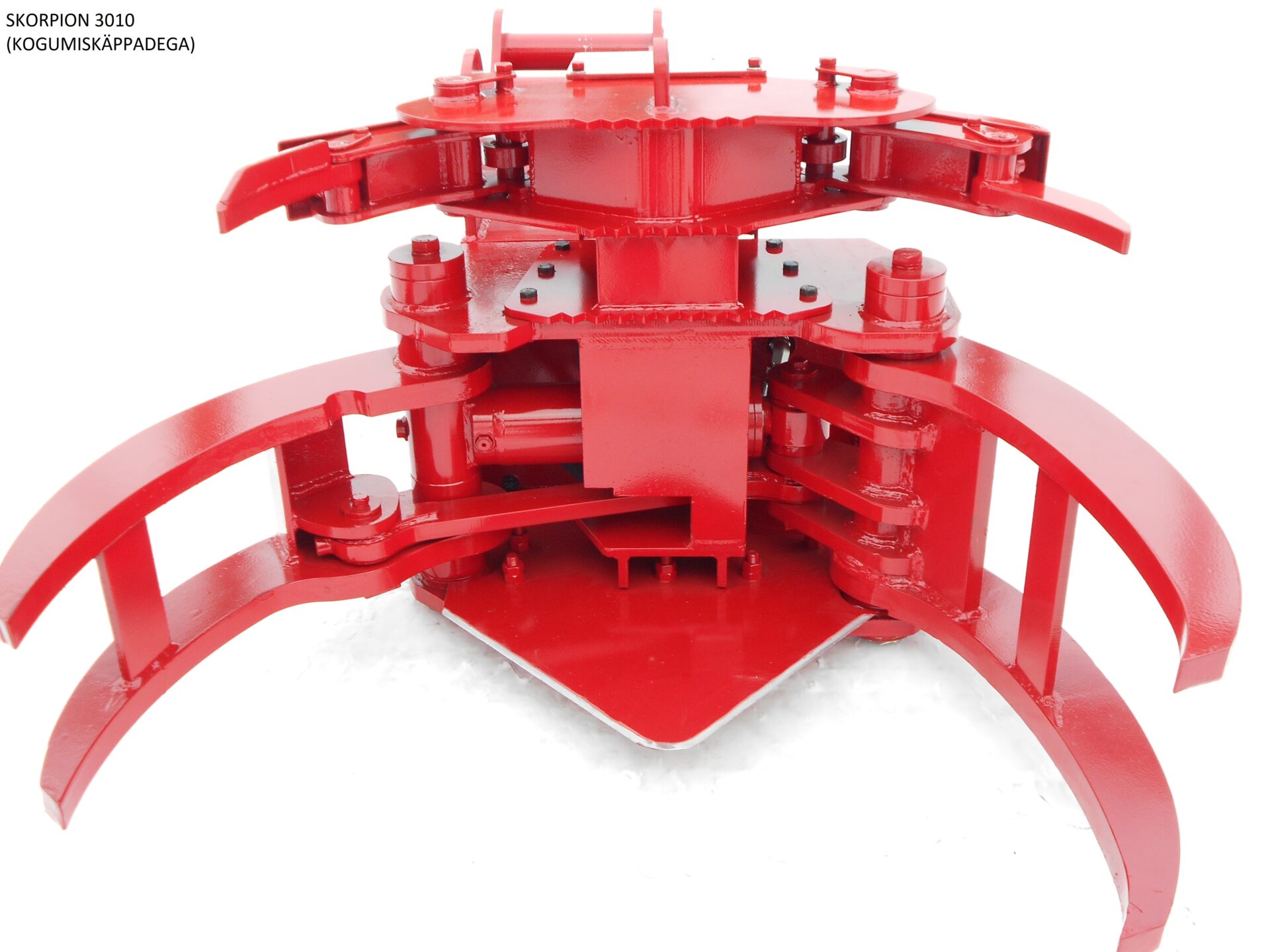

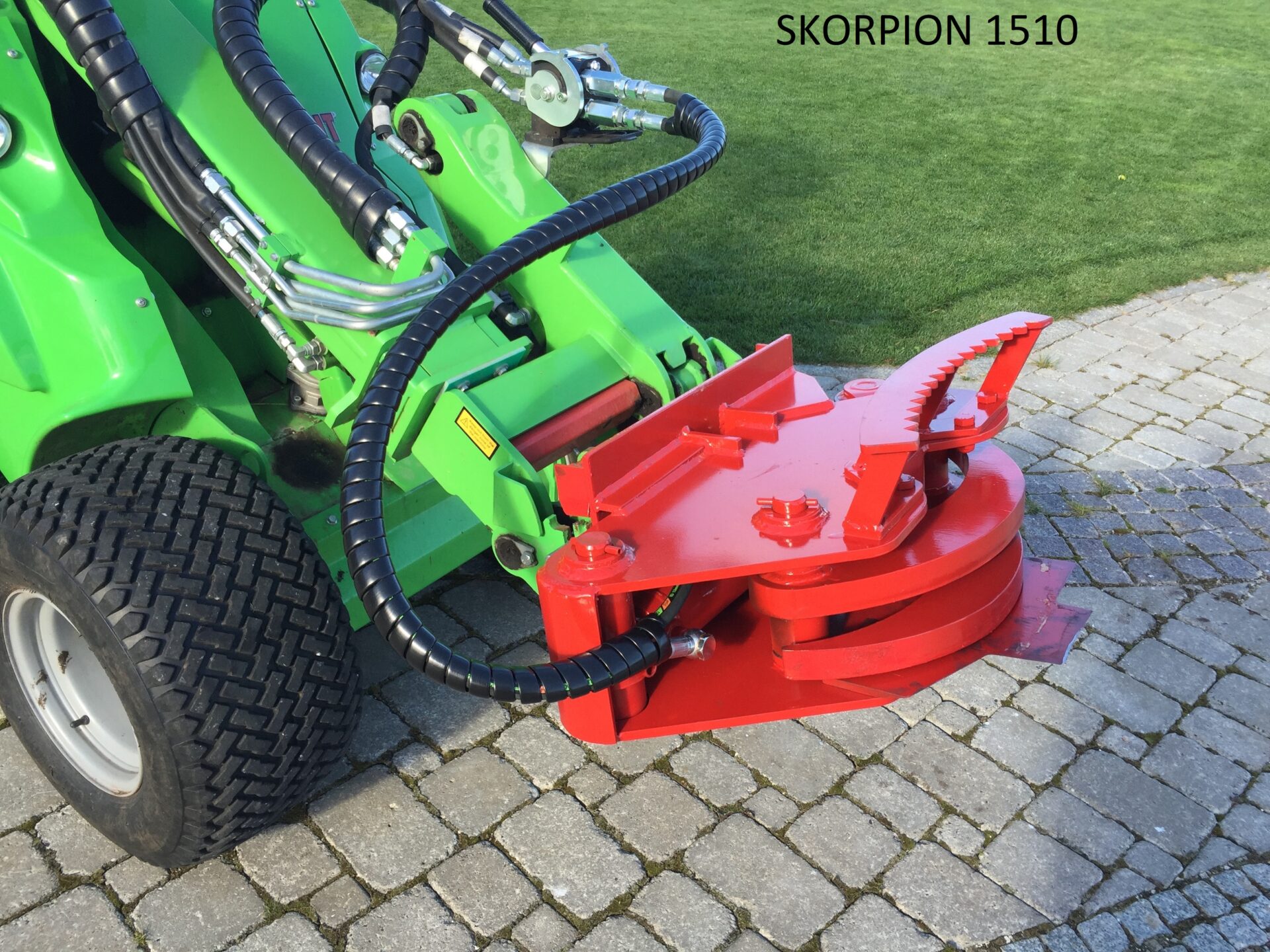

Energy wood grapple
The energy wood grapple is meant to be used as a work tool for tracked or wheeled excavators. The device can be used for felling growing trees with a diameter of up to 35 cm.
The grapple’s knife is bolted which makes its replacement easy and convenient. The knife and arms are made of wear-proof steel. Mõisaküla Masinatehas offers energy wood grapples in three different sizes.
Technical specifications
SKORPION 1510
SKORPION 2510
SKORPION 3010
Operating pressure (bar)
190
300
265
Pump capacity (l/min)
80
150
170
Max diameter (mm)
150
250
350
Weight (kg)
120
500
750
Suggested weight for excavator (t)
2-3,5
8-12
12-21
Technical specifications
| SKORPION 1510 | SKORPION 2510 | SKORPION 3010 | |
|
Operating pressure (bar)
|
190 | 300 | 265 |
|
Pump capacity (l/min)
|
80 | 150 | 170 |
|
Max diameter (mm)
|
150 | 250 | 350 |
|
Weight (kg)
|
120 | 500 | 750 |
|
Suggested weight for excavator (t)
|
2-3,5 | 8-12 | 12-21 |
Before you start working with the guillotine, be sure to watch our training video!
First-time buyers of the product shall receive free training in using the product by Mõisaküla Masinatehas.

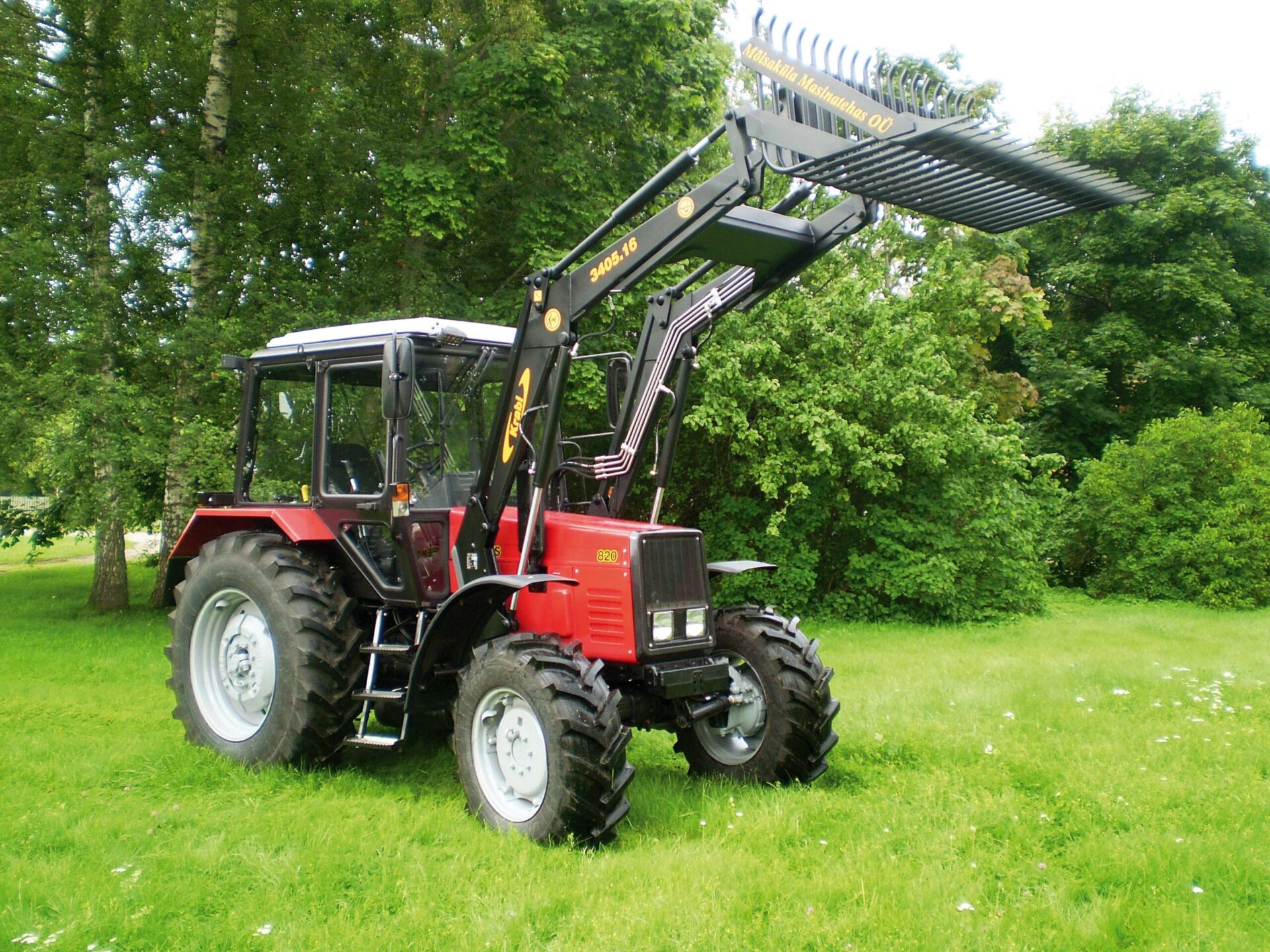

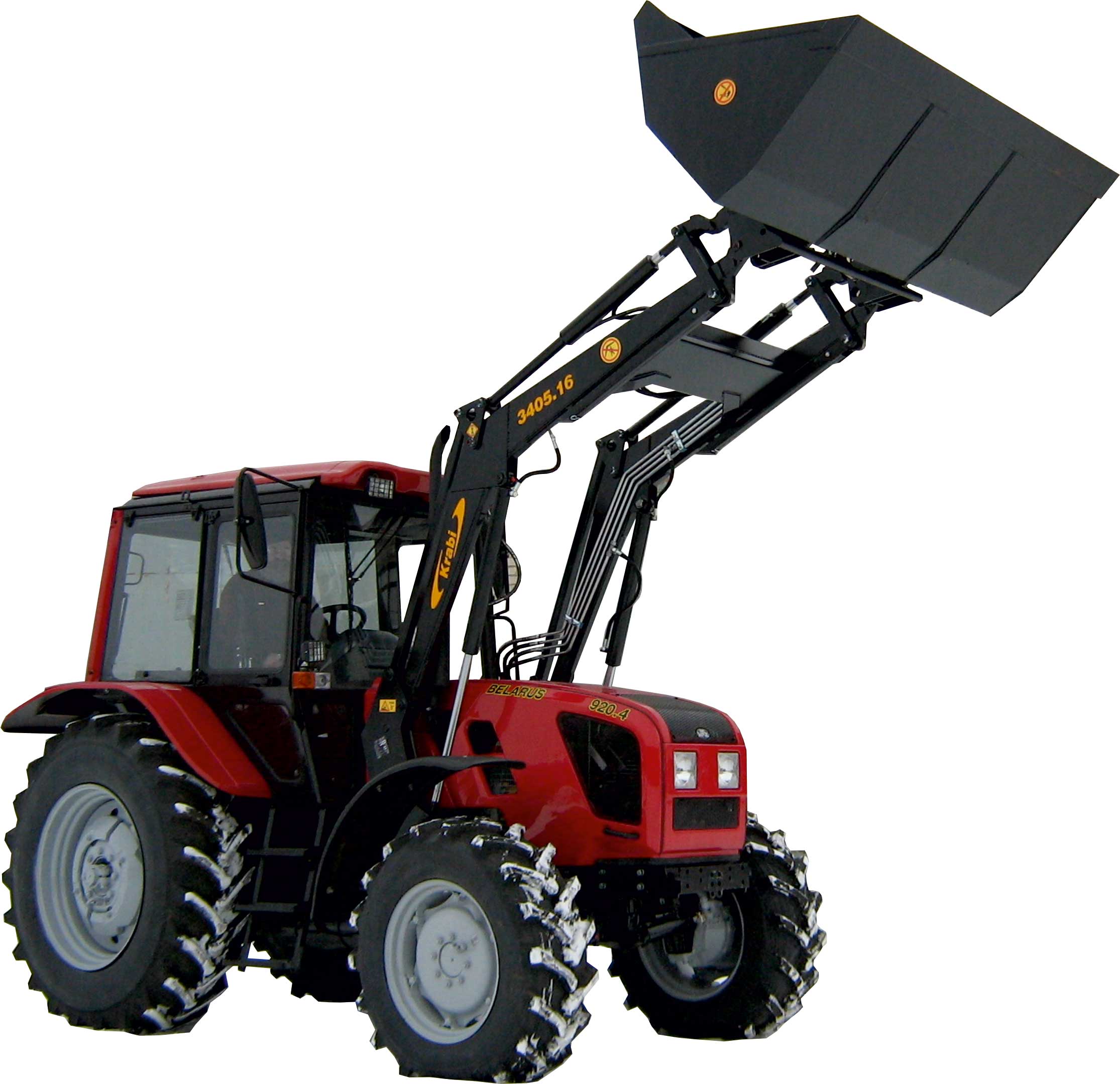

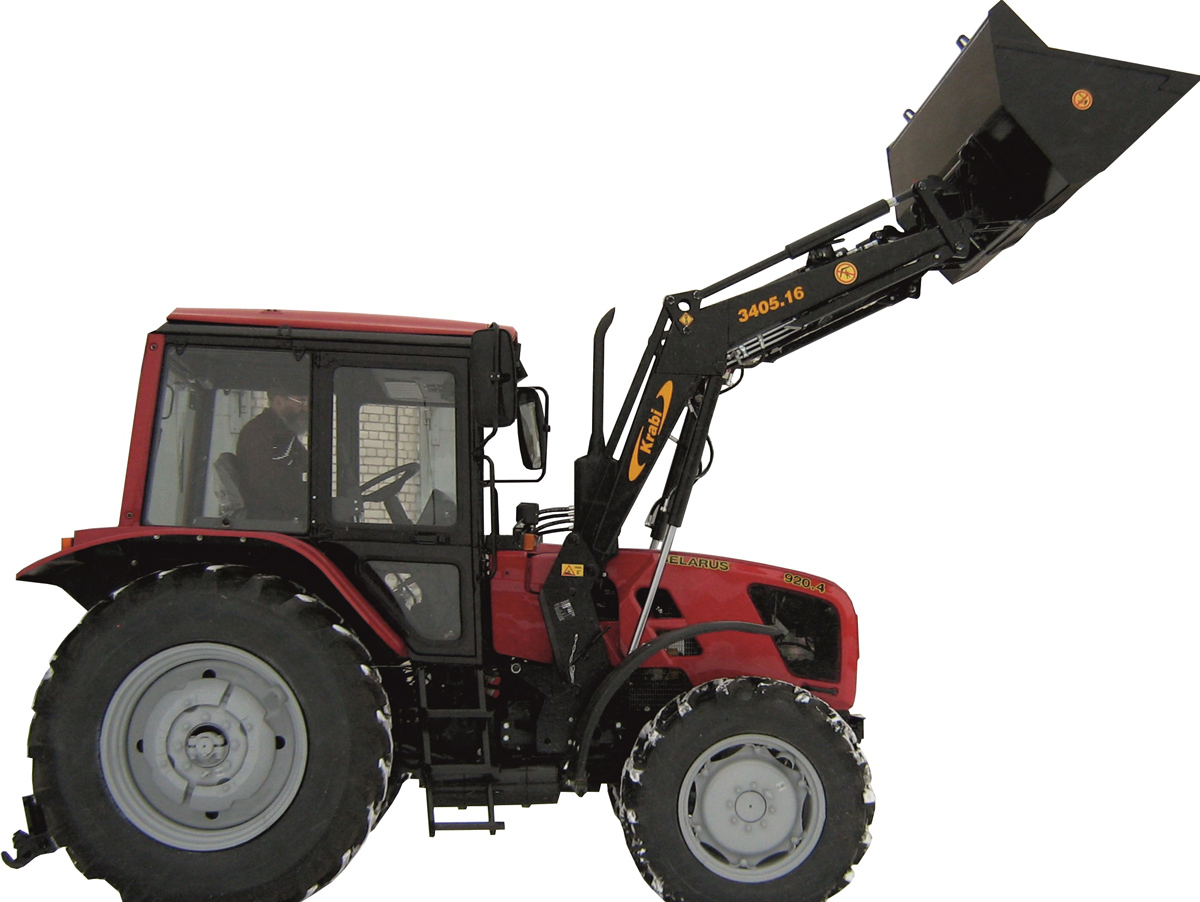

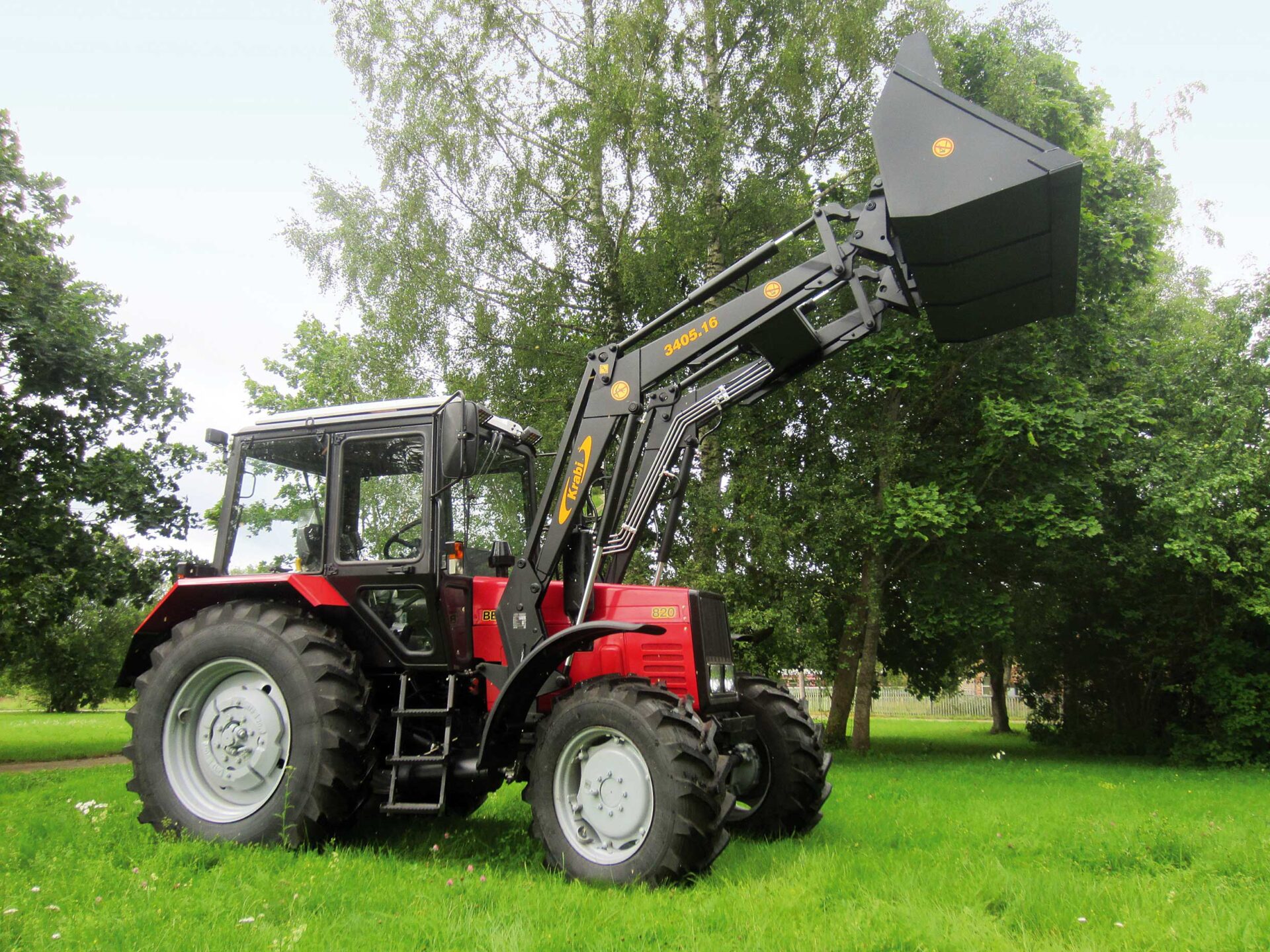

Krabi 3405.16
Additional information
Krabi 3405.16
For tractors MTZ BELARUS 800/900/1000 with power of 55-70 kW
Used for earthworks, loading works and land clearing and for hauling various loads.
- Fast assembly to the tractor
- Parallelogram mechanism for monitoring
- Possibility to use a wide selection of work tools
- SMS/EURO type attachment
- Trifunctional control using one lever (joystick)
Technical specifications
Technical specifications
|
Maximum lifting height in relation to the bucket pivot point
|
3,45 m |
|
Operating pressure in hydraulic system
|
160 bar |
|
Lifting capacity at maximum height
|
|
| -At the pivot point | 1600 kg |
| -600 mm from the pivot point | 1200 kg |
|
Lifting capacity at the height of two meters
|
|
| -At the pivot point | 1650 kg |
| -600 mm from the pivot point | 1320 kg |
|
Bucket unload angle
|
55˚ |
|
Bucket load angle
|
50˚ |
|
Weight (without mounting frame)
|
480 kg |
